600kg Industrial Vacuum Glass Suction Crane Lifter For Lifting Glass
Product Description:
It is designed for lifting and installing large and/or heavy glass elements of up to 1,200 kilograms in weight. Versatile configuration options allow easy installation of both large, long panels and small, narrow glass panels.Widely used in glass workshop and construction area.
Features:

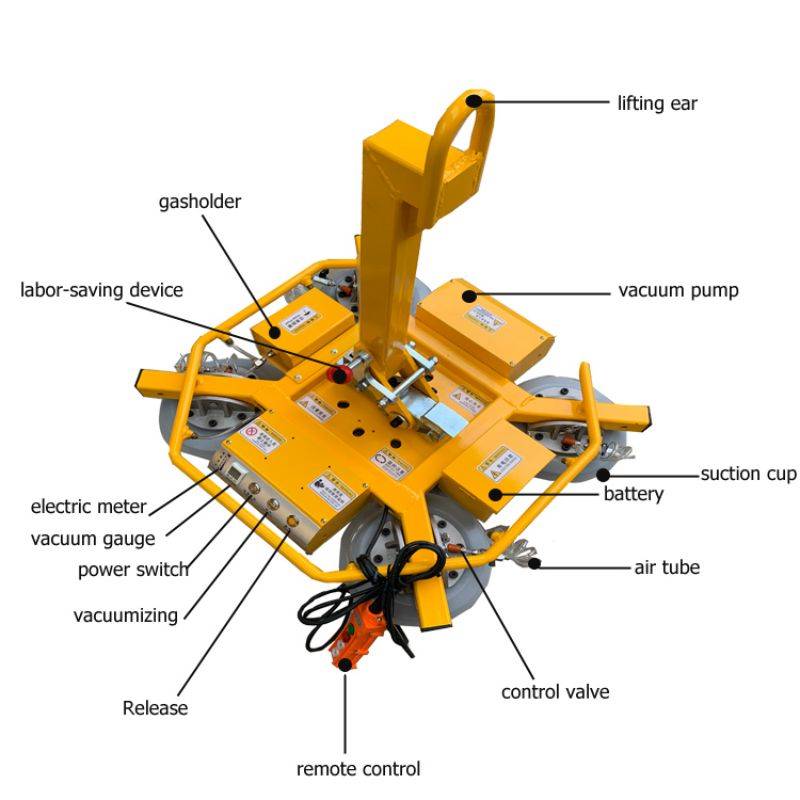

1. Fully enclosed shell design, Q345 manganese steel material square tube welding, safe and reliable. Widely used in glass deep processing handling and glass curtain wall installation.
4. Adopt American THOMAS DC vacuum pump and maintenance-free battery, in the process of use, no need to connect additional air source or power supply
5. Japan Panasonic digital display vacuum pressure switch and battery power meter, can clearly monitor the safe operation of the equipment
6. The equipment comes with a vacuum pressure replenishment system, which can ensure that the whole vacuum system maintains a relatively constant safety pressure value in the process of glass handling.
7. Equipped with a power failure pressure-holding and alarm device, after an accidental power failure, the pressure-holding function can extend the emergency processing time and make it safer to use.
8. Equipped with 12V backup battery, if the battery runs out of power during operation, it can be replaced in time to ensure the progress of the project.Technical Parameters:
| Name | Glass installation Vacuumlifter | Glass installation Vacuumlifter | Glass installation Vacuumlifter | Glass installation Vacuumlifter |
| Model | SSURY400 | SSURY600 | SSURY800 | SSURY1200 |
| Lifting capacity | 400kg | 600kg | 800kg | 1200kg |
| Cup quantity | 4 | 6 | 8 | 12 |
| Single cup size | 300mm | 300mm | 300mm | 300mm |
| Single cup lifting capacity | 100kg | 100kg | 100kg | 100kg |
| Manual rotating | 360° | 360° | 360° | 360° |
| Manual tilting | 90° | 90° | 90° | 90° |
| Voltage | DC12 | DC12 | DC12 | DC12 |
| Charge | AC220/110 | AC220/110 | AC220/110 | AC220/110 |
| Weight | 70kg | 90kg | 100kg | 120kg |
| Sucker frame size | 870x770x200mm | 2370x1030x200mm | 1900x1580x200mm | 2300x1780x200mm |
| Extension bar length | 590mm | 590mm | 590mm | 590mm |
| Control system | Integrated control and wired remote control |
Configuration:
Q: Are you manufacture?
A: Yes, we are the professional manufacture.
Q: How about the service?
A: 1).It reply it within 12 hour
2).Deliver days within 10 days
3).24 hours for after-sale service
4).More than 10 years experience in this kind machine
Q: What's the guarantee ?
A: 1).Our guarantee for 12 months.
2).24 hour's technical support by email or calling
3).English manual and video tutorial
4).1 year quality guaranty for the machine(excluding the consumables)
5).24 hours on line service each day,free technical support
Q: Do you provide equipment operation training?
A: Yes.We can send professional engineers to the working site for equipment installation,adjustment,and operation training.
Q: How long is the delivery time ?
A: For standard machines,it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 20 days.
Q: What is the payment?
A: Any payment method you want, such as L/C,T/T,D/P,West-Union and so on.
